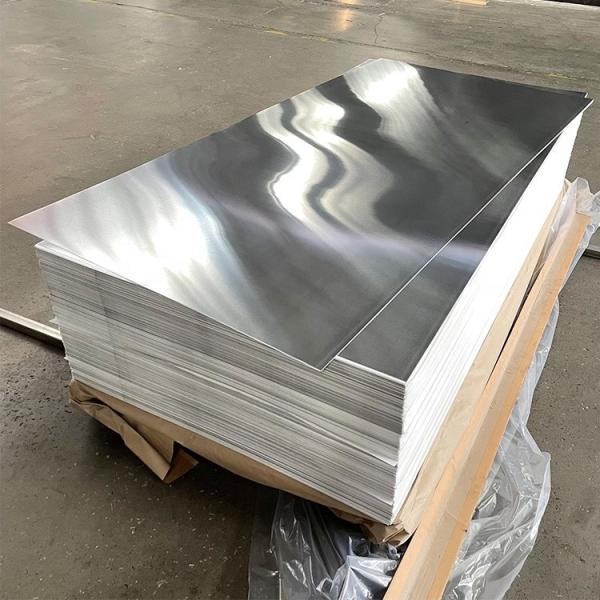

High Quality Alloy Aluminium Sheet 2024 Cold Drawn 2000 Series For Aerospace
Product Description
2024 aluminum coils and sheets are considered the "aircraft" alloy because of its strength. It is readily formed in the annealed condition and may be subsequently heat treated. 2024 aluminum sheets possess good machinability and can be machined to a high finish. Since corrosion resistance is relatively low, aluminum alloy 2024 is commonly used with an anodized finish or in clad form (“Alclad”) with a thin surface layer of high purity aluminum. As an enhanced sheet for fuselage applications, Alclad offers improved fracture toughness and fatigue crack growth while maintaining the strength characteristics of the alloy. 2024 aluminum is often used for applications in the aerospace industry.
| Product Name | Aluminium alloy plate sheet | |||
| Standard | National standard: 7A09 GB/T3190--2008, Japanese standard: A7075 JIS H4000-1999 JIS H4080-1999 | |||
| Tensile strength σb (MPa) : 524, Yield strength σs (MPa) ≥455, Hardness: 150HB, Density:2.81g/cm³, Poisson's ratio: 0.33 | ||||
| Production technology | Precision cutting → Surface grinding → cutting → molding | |||
| Typical uses | Aerospace industry, blow molding (bottle) mold, ultrasonic plastic welding mold, golf ball head, shoe mold, paper plastic mold, foam molding mold, dewaxing mold, template, fixture, mechanical equipment, mold processing, for the production of high-end aluminum alloy bicycle frame. | |||
| Specification | Thickness: 0.6mm-20mm Width: 1250/1500/1520/2000mm Length: 2500/3000/4000mm or as customer's requirement | |||
| Export Packing | Standard Seaworthy Package | |||
| Loading of Port | Shanghai port,Tianjin Port or as required | |||
Aluminum Grade
1000 Series | Industrial Pure Aluminum(1050,1060 ,1070, 1100) |
2000 Series | Aluminum-copper alloys(2024(2A12), LY12, LY11, 2A11, 2A14(LD10),
2017, 2A17) |
3000 Series | Aluminum-manganese alloys(3A21, 3003, 3103, 3004, 3005, 3105) |
4000 Series | Al-Si alloys(4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047,
4047A) |
5000 Series | Al-Mg alloys(5052, 5083, 5754, 5005, 5086,5182) |
6000 Series | Aluminum Magnesium Silicon Alloys(6063, 6061, 6060, 6351, 6070,
6181, 6082, 6A02) |
7000 Series | Aluminum, Zinc, Magnesium and Copper Alloys(7075, 7A04, 7A09, 7A52,
7A05) |
Product Detail
Chemical Composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 99.5 |
1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | 0.04 | 0.03 | 99.7 |
1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 99 | |
2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | Rem. |
3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | Rem. |
3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | — | 0.25 | — | Rem. |
3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | Rem. |
5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | Rem. |
5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | Rem. |
5252 | 0.08 | 0.1 | 0.1 | 0.1 | 2.2-2.8 | — | 0.05 | — | Rem. |
6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | Rem. |
7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | Rem. |
Test
Recommend Products
Application
| 2xxx | 2A12 2024 | Aviation aluminum materials are mainly used in aircraft structures (such as skins),aerospace, weapons, engines, pistons, automobile bodies, ship hulls and stressed components |
Packing and Shippment
Certification
FAQ
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our
samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the
number of tons you need to purchase.
Q:What are the shipping ports?
A:You can choose other ports according to your needs.
|
|
