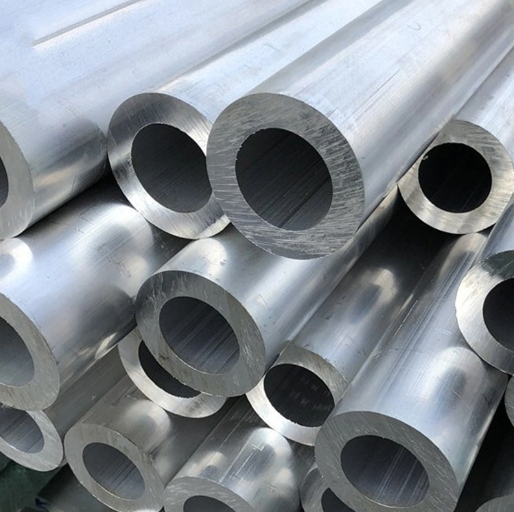

Customize Alloy Round Aluminium Pipe 7075 T6 Wall Thickness 2mm 3mm
Mill Finish Anodized
Product Description
A high-strength hard aluminum that can be strengthened by heat treatment. It has moderate plasticity in annealing, just quenching and hot state, good spot welding weldability, and the aluminum tube has a tendency to form intergranular cracks when using gas welding and argon arc welding; the aluminum tube has good machinability after quenching and cold work hardening, but poor in the annealed state. The corrosion resistance is not high, and anodizing and painting methods or an aluminum layer on the surface are often used to improve corrosion resistance. It can also be used as a mold material.
| Alloy | 6060 | 6063 | 6061 | 6005A | 6082 | 7075 |
| Temper | T66 | T5/T6 | T6/T651 | T6/T651 | T6/T651 | T6/T651 |
| Standard | EN755-9; DIN | GB5237-2008 EN755-3/DIN ASTMB221 | GB6892-2008 ASTMB221 AMS-QQA-4574 | GB6892-2008 ASTMB221 AMS-QQA-4574 | GB6892-2008 ASTMB221 AMS-QQA-4574 | GB6892-2008 ASTMB221 AMS-QQA-4574 |
| Certification | ISO9001-2008 | ISO9001-2008 | ISO9001-2008 | ISO9001-2008 | ISO9001-2008 | ISO9001-2008 |
| Surface | Anodized, powder coated, wooden grain, polished, brushed, PVDF Coating. | |||||
| Color | Anodizing | Silver, bronze, champagne, titanium, nickel, golden yellow, etc | ||||
| The anodized film thickness is over 10um | ||||||
| Powder coating | White, Black, Grey, Green, Blue, Yellow, Red and etc. | |||||
| The powder coated thickness is over 80um. | ||||||
| Deep Processing | Fabrication | 90 degree, 45degree and any degree Cutting, punching, drilling, bending, weld, mill, CNC, etc. | ||||
Product Detail
Chemical Compositon
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr |
Impurity | Al | 2014 | 0.5-1.2 | 0.7 | 3.9-5.0 | 0.4-1.2 | 0.2-0.8 | 0.1 | 0.25 |
0.15 | - | 0.15 | Rest | 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 |
0.1 | 0.25 | 0.15 | - | 0.15 | Rest | 2024 | 0.5 | 0.5 | 3.8-4.9 |
0.3-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | - | 0.15 | Rest | 5052 | 0.25 |
0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | - | - | 0.15 | Rest |
5056 | 0.3 | 0.4 | 0.1 | 0.05-0.20 | 4.5-5.6 | 0.05-0.20 | 0.1 | - | - |
0.15 | Rest | 5083 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 |
0.15 | - | 0.15 | Rest | 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 |
0.3 | 0.2 | 0.15 | - | 0.15 | Rest | 6061 | 0.4-0.8 | 0.70 | 0.15-0.40 |
0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | - | 0.15 | Rest | 6063 | 0.2-0.6 |
0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | - | 0.15 | Rest |
6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | 0.2 | 0.1 | - |
Physical Properties
| Physical Properties | Tensile Strength | Yield Strength | Elongation(%) | ||
| Grade | Hardness | (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 | |
| H14 | 124.1 | 117.2 | 3 | 10 | |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 | |
| T4 | 468.8 | 324.1 | 20 | 19 | |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 | |
| H14 | 151.7 | 144.8 | 3 | 7 | |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 | |
| H34 | 262 | 213.7 | 6 | 8 | |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 | |
| H34 | 330.9 | 255.1 | 11 | 14 | |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 | |
| T6 | 310.3 | 275.8 | 12 | 17 | |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 | |
