JIANGSU LIANZHONG METAL PRODUCTS (GROUP) CO., LTD
3 Years
| Ask Lasest Price | |
| Brand Name : | CHINALCO |
| Model Number : | 1000series, 2000series, 3000series, 5000series, 6000series, 7000series |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 2000 Ton/Tons per Month |
| Delivery Time : | About 7-10 days,depends on the specific order |

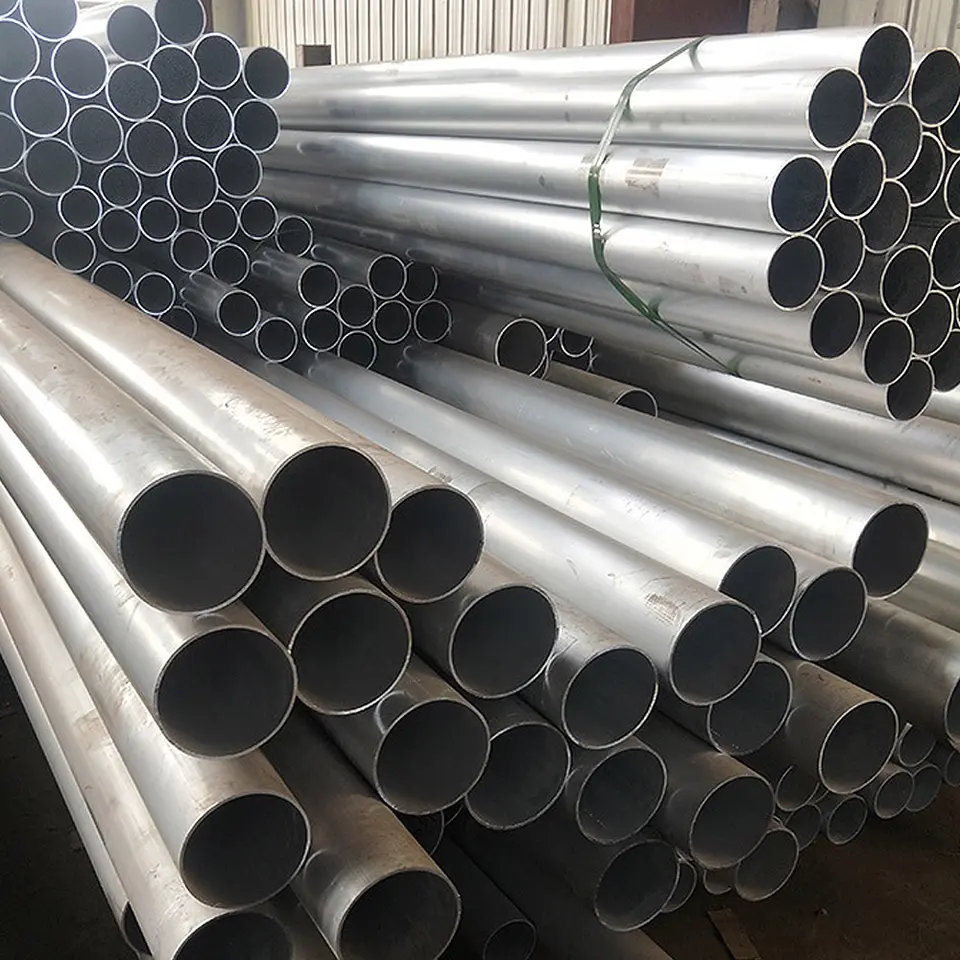

ASTM 2024 T4 Aluminium Pipe Alloy Tube OD 57mm Anodized Round
Seamless Hollow Section
Product Description
Item | Aluminum Pipe | |
Standard | GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc | |
Material | 1050,1060,2A14,3003,3103,4032,5454,5754,5056,5082,5086,6061,6060,6082,7075,7475 | |
Size | Thickness | 0.6-20mm or as required |
| Diameter | 100-2000mm or as required | |
Length | 2000mm,2440mm,6000mm,or as required. | |
Quality control | Mill Test Certification is supplied with shipment,Third Part
Inspection is acceptable. | |
Surface | Bright,polished,hair line,brush,sand
blast,checkered,embossed,etching,etc | |
Product Detail
Chemical Compositon
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr |
Impurity | Al | 2014 | 0.5-1.2 | 0.7 | 3.9-5.0 | 0.4-1.2 | 0.2-0.8 | 0.1 | 0.25 |
0.15 | - | 0.15 | Rest | 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 |
0.1 | 0.25 | 0.15 | - | 0.15 | Rest | 2024 | 0.5 | 0.5 | 3.8-4.9 |
0.3-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | - | 0.15 | Rest | 5052 | 0.25 |
0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | - | - | 0.15 | Rest |
5056 | 0.3 | 0.4 | 0.1 | 0.05-0.20 | 4.5-5.6 | 0.05-0.20 | 0.1 | - | - |
0.15 | Rest | 5083 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 |
0.15 | - | 0.15 | Rest | 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 |
0.3 | 0.2 | 0.15 | - | 0.15 | Rest | 6061 | 0.4-0.8 | 0.70 | 0.15-0.40 |
0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | - | 0.15 | Rest | 6063 | 0.2-0.6 |
0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | - | 0.15 | Rest |
6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | 0.2 | 0.1 | - |
Physical Properties
| Physical Properties | Tensile Strength | Yield Strength | Elongation(%) | ||
| Grade | Hardness | (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 | |
| H14 | 124.1 | 117.2 | 3 | 10 | |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 | |
| T4 | 468.8 | 324.1 | 20 | 19 | |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 | |
| H14 | 151.7 | 144.8 | 3 | 7 | |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 | |
| H34 | 262 | 213.7 | 6 | 8 | |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 | |
| H34 | 330.9 | 255.1 | 11 | 14 | |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 | |
| T6 | 310.3 | 275.8 | 12 | 17 | |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 | |
Provided Service
Recommend Products
Application
Packing & Shipping
Certificate
FAQ
Q:Can I get some samples?
A: Yes, sample order is available for quality check and market
test. But you have to pay the sample cost and express cost.
Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5
days, big order need negotiation.
|
|
