Small Diameter 3003 Aluminium Pipe 5083 Mill Finish ASTM B211
Customized Packing
Product Description

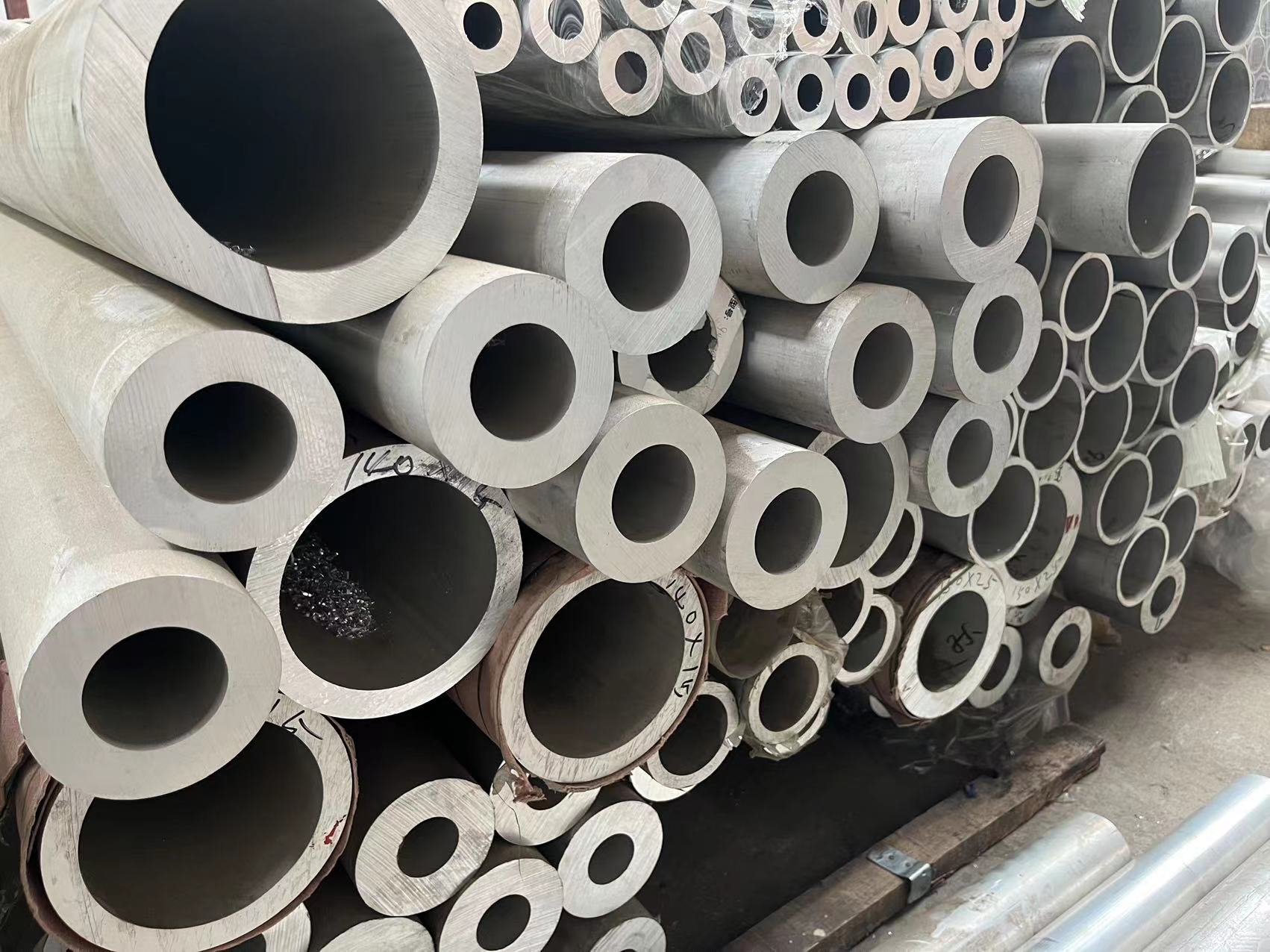

Aluminum tube is a kind of nonferrous metal tube, which refers to
the metal tubular material extruded from pure aluminum
or aluminum alloy to be hollow along its longitudinal full length.
According to the shape, it can be divided into square pipe, round
pipe, riffled pipe, profiled pipe and universal aluminum pipe.
It can be divided into seamless aluminum tube and ordinary extruded
tube according to extrusion mode.
Aluminum Pipe/Tube | |
1000 Series | Industrial Pure Aluminum(1050,1060 ,1070, 1100) |
2000 Series | Aluminum-copper alloys(2024(2A12), LY12, LY11, 2A11, 2A14(LD10),
2017, 2A17) |
3000 Series | Aluminum-manganese alloys(3A21, 3003, 3103, 3004, 3005, 3105) |
4000 Series | Al-Si alloys(4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047,
4047A) |
5000 Series | Al-Mg alloys(5052, 5083, 5754, 5005, 5086,5182) |
6000 Series | Aluminum Magnesium Silicon Alloys(6063, 6061, 6060, 6351, 6070,
6181, 6082, 6A02) |
7000 Series | Aluminum, Zinc, Magnesium and Copper Alloys(7075, 7A04, 7A09, 7A52,
7A05) |
Wall Thickness | 0.6mm-20mm, or as required |
Outer Diameter | 2mm-100mm, or as required |
Length | 1000mm-6000mm, or as required |
Application | Lid Stock. Industrial Device, Storage. All Kinds of Containers,
etc. |
MOQ | 500kg |
Feature | Lid Shigh conductivity, good corrosion resistant performance, high
latent heatof melting, high-reflectance, well weldingproperty*, low
strength, and notsuitable for heat treatments. |
Product Detail
Chemical Compositon
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr |
Impurity | Al | 2014 | 0.5-1.2 | 0.7 | 3.9-5.0 | 0.4-1.2 | 0.2-0.8 | 0.1 | 0.25 |
0.15 | - | 0.15 | Rest | 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 |
0.1 | 0.25 | 0.15 | - | 0.15 | Rest | 2024 | 0.5 | 0.5 | 3.8-4.9 |
0.3-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | - | 0.15 | Rest | 5052 | 0.25 |
0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | - | - | 0.15 | Rest |
5056 | 0.3 | 0.4 | 0.1 | 0.05-0.20 | 4.5-5.6 | 0.05-0.20 | 0.1 | - | - |
0.15 | Rest | 5083 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 |
0.15 | - | 0.15 | Rest | 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 |
0.3 | 0.2 | 0.15 | - | 0.15 | Rest | 6061 | 0.4-0.8 | 0.70 | 0.15-0.40 |
0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | - | 0.15 | Rest | 6063 | 0.2-0.6 |
0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | - | 0.15 | Rest |
6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | 0.2 | 0.1 | - |
Physical Properties
| Physical Properties | Tensile Strength | Yield Strength | Elongation(%) | ||
| Grade | Hardness | (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 | |
| H14 | 124.1 | 117.2 | 3 | 10 | |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 | |
| T4 | 468.8 | 324.1 | 20 | 19 | |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 | |
| H14 | 151.7 | 144.8 | 3 | 7 | |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 | |
| H34 | 262 | 213.7 | 6 | 8 | |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 | |
| H34 | 330.9 | 255.1 | 11 | 14 | |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 | |
| T6 | 310.3 | 275.8 | 12 | 17 | |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 | |
Test
Provided Service
Recommend Products
Application
Packing & Shipping
Certificate
FAQ
Q:Can I get some samples?
A: Yes, sample order is available for quality check and market
test. But you have to pay the sample cost and express cost.
Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5
days, big order need negotiation.
|
|
