JIANGSU LIANZHONG METAL PRODUCTS (GROUP) CO., LTD
3 Years
| Ask Lasest Price | |
| Brand Name : | CHINALCO |
| Model Number : | 1000series, 2000series, 3000series, 5000series, 6000series, 7000series |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 2000 Ton/Tons per Month |
| Delivery Time : | 3-15 days |

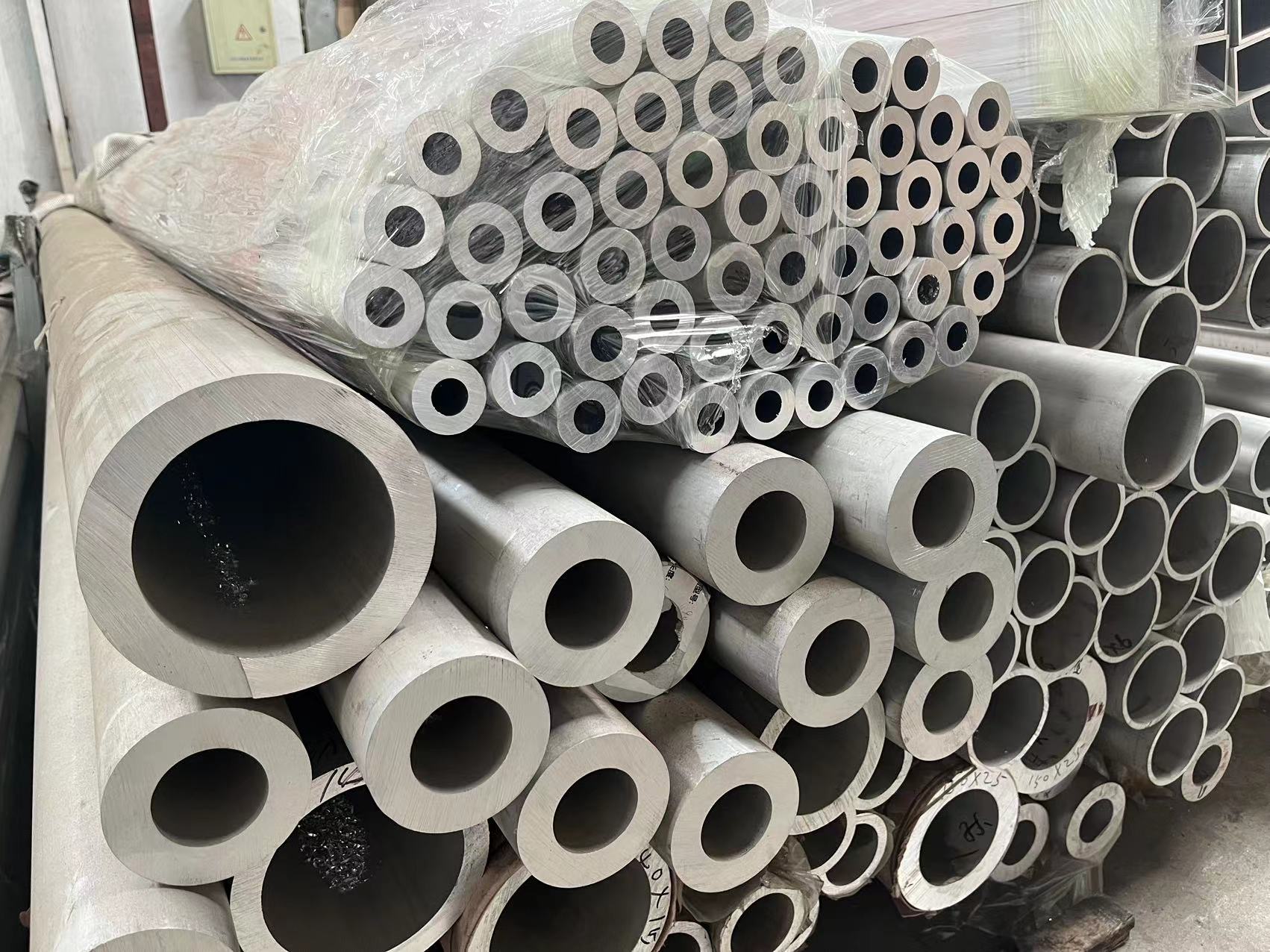

Extrude Seamless Aluminium Pipe 6061 6063 Round Mill Finished 10mm
Thick Laser Cutting
Product Description
Aluminum alloy has low density, high strength, close to or higher than high-quality steel, good plasticity, and can be processed into various profiles. It has excellent electrical conductivity, thermal conductivity and corrosion resistance. It is widely used in industry, and its usage is only second to that of steel.
| Item | Aluminium alloy pipe | |
| Material | Aluminium alloy | |
| Type of tube | Welded or seamless | |
| Size | Outer Diameter:5-650mm or as required | |
| Wall Thickness: 1-53mm or as required | ||
| Length:1000-11000mm or as required | ||
Grade | 1000 series: 1050,1060,1070,1080,1100,1435, etc 2000 series: 2011,2014,2017,2024, etc 3000 series: 3002,3003,3104,3204,3030, etc 5000 series: 5005,5025,5040,5056,5083, etc 6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc 7000 series: 7003,7005,7050,7075, etc | |
Surface treatment | Mill finish,anodized,Powder coating,Wooden grain,Sand blast, electroplate | |
| Package | Aluminum tube and pipes are packed in bundle with plastic bags, then in wooden case. | |
| MOQ | 500KG | |
| Leading time | 7-10 days after advance payment,depends on the specific quantity | |
Product Detail
Chemical Compositon
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr |
Impurity | Al | 2014 | 0.5-1.2 | 0.7 | 3.9-5.0 | 0.4-1.2 | 0.2-0.8 | 0.1 | 0.25 |
0.15 | - | 0.15 | Rest | 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 |
0.1 | 0.25 | 0.15 | - | 0.15 | Rest | 2024 | 0.5 | 0.5 | 3.8-4.9 |
0.3-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | - | 0.15 | Rest | 5052 | 0.25 |
0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | - | - | 0.15 | Rest |
5056 | 0.3 | 0.4 | 0.1 | 0.05-0.20 | 4.5-5.6 | 0.05-0.20 | 0.1 | - | - |
0.15 | Rest | 5083 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 |
0.15 | - | 0.15 | Rest | 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 |
0.3 | 0.2 | 0.15 | - | 0.15 | Rest | 6061 | 0.4-0.8 | 0.70 | 0.15-0.40 |
0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | - | 0.15 | Rest | 6063 | 0.2-0.6 |
0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | - | 0.15 | Rest |
6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | 0.2 | 0.1 | - |
Physical Properties
| Physical Properties | Tensile Strength | Yield Strength | Elongation(%) | ||
| Grade | Hardness | (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 | |
| H14 | 124.1 | 117.2 | 3 | 10 | |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 | |
| T4 | 468.8 | 324.1 | 20 | 19 | |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 | |
| H14 | 151.7 | 144.8 | 3 | 7 | |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 | |
| H34 | 262 | 213.7 | 6 | 8 | |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 | |
| H34 | 330.9 | 255.1 | 11 | 14 | |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 | |
| T6 | 310.3 | 275.8 | 12 | 17 | |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 | |
Recommend Products
Application
Packing & Shipping
Certificate
FAQ
Q:Can I get some samples?
A: Yes, sample order is available for quality check and market
test. But you have to pay the sample cost and express cost.
Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5
days, big order need negotiation.
|
|
