JIANGSU LIANZHONG METAL PRODUCTS (GROUP) CO., LTD
3 Years
| Ask Lasest Price | |
| Brand Name : | LIANZHONG |
| Model Number : | 1000series, 2000series, 3000series, 5000series, 6000series, 7000series |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 20000 Ton/Tons per Month |
| Delivery Time : | 3-15 days |

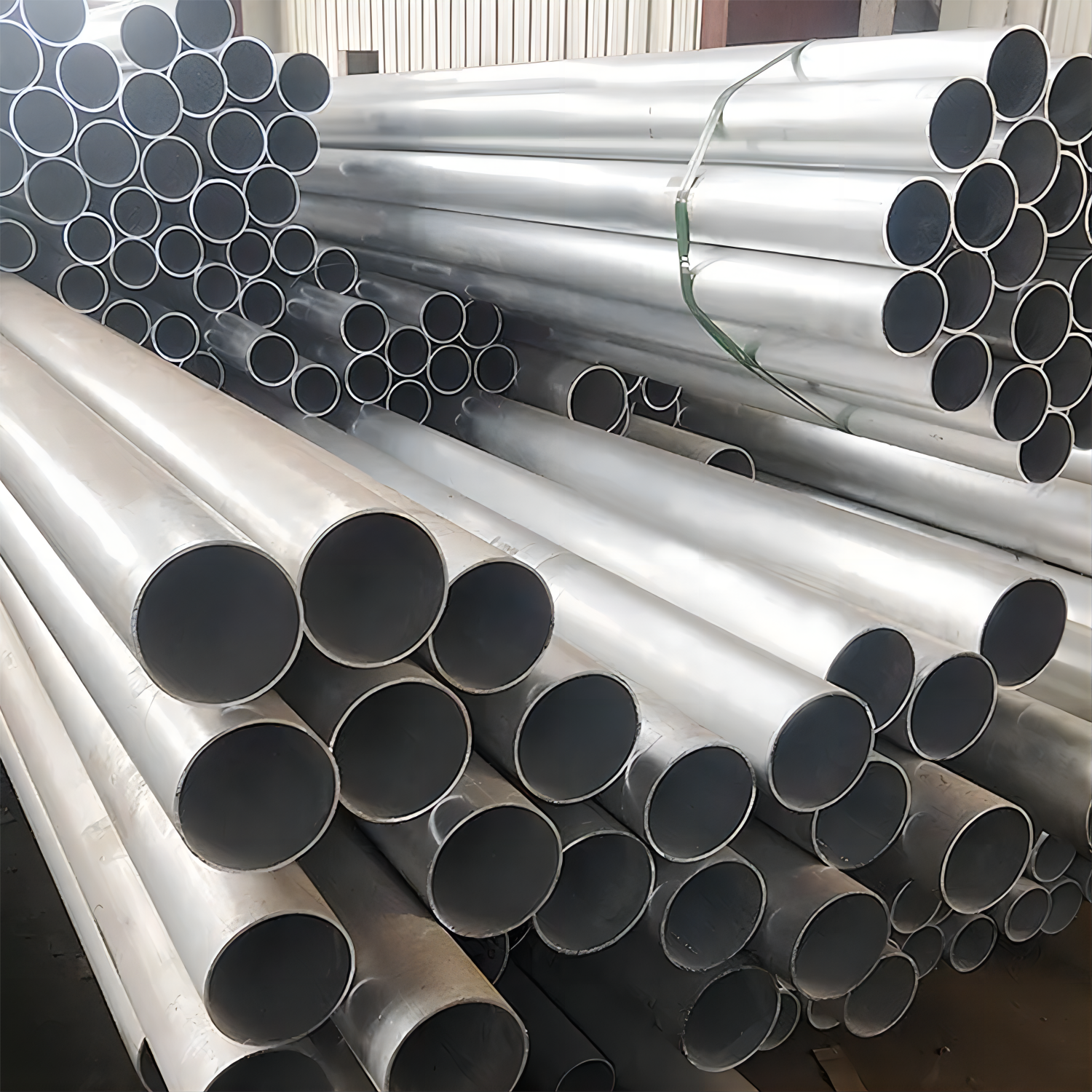

Aluminum Tube 7020 7075 T6 Cold Rolled Aluminum Tube Seamless Round Pipe Wall Thickness 2mm
Product Introduction
Advantages of aluminum tubes:
1. Advantages of welding technology: The welding technology of thin-walled copper-aluminum tubes suitable for industrial production is known as a world-class problem and is the key technology for replacing copper with aluminum for connecting tubes of air conditioners.
2. Advantages of service life: From the perspective of the inner wall of the aluminum tube, since the refrigerant does not contain moisture, the inner wall of the copper-aluminum connecting tube will not corrode.
3. Energy-saving advantages: The connection pipeline between the indoor unit and the outdoor unit of the air conditioner, the lower the heat transfer efficiency, the more energy-saving, or the better the thermal insulation effect, the more power-saving.
4. Excellent bending performance, easy to install and move.
Product Name | Aluminum pipe |
Shape | Round,Square,Rectangular,Oval,half-round |
Color available | Silver, Bronze, champagne, Matte, Natural for anodizing, RAL for
powder coating |
Out Diameter | 2mm-2500mm or as the customer’s request |
Business type | Manufactory |
Thickness | 0.5mm-150mm or as the customer’s request |
OEM Service | Perforated, Cutting special size, Doing flatness, Surface
treatment,etc |
Delivery Time | Within 3 days for our stock size,7-15 days for our production |
MOQ | 100kg |
Usage | 1.LED light industry 2.Solar industry 3.Sanitary industry 4.Auto party industry 5.Heat sink industry and etc |
Surface treatment | Mill finish, anodized, powder coated, electrophoresis, sand
blasting, wood grain painting, matted, polishing bright etc. |
Standard | GB/T6893-2000,GB/T4437-2000,ASTM B210,ASTM B241,ASTM B234,JIS
H4080-2006,etc |
Product Detail
Sample Room
Chemical Composition
Garde | Chemical composition | ||||||||
Si | Fe | Cu | Mn | Mg | Zn | Ti | Other | Al | |
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 99.5 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | 0.03 | 99.6 |
1100 | Si+Fe:0.95 | 0.05-0.2 | 0.05 | - | 0.1 | - | 0.15 | 99 | |
2A12 | 0.5 | 0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.3 | 0.15 | 1 | remains |
2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-0.1 | 0.4-0.8 | 0.25 | 0.15 | 0.15 | remains |
2014 | 0.5-1.2 | 0.7 | 3.9-5 | 0.4-1.2 | 0.2-0.8 | 0.25 | 0.15 | 0.15 | remains |
3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | 0.1 | - | 0.15 | remains |
3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.2-0.6 | 0.25 | 0.1 | 0.15 | remains |
3105 | 0.6 | 0.7 | 0.3 | 0.3-0.8 | 0.2-0.8 | 0.4 | 0.1 | 0.15 | remains |
5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.25 | - | 0.15 | remains |
5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.1 | - | 0.15 | remains |
5083 | 0.4 | 0.4 | 0.1 | 0.4-1 | 4.0-4.9 | 0.25 | 0.15 | 0.15 | remains |
5182 | 0.2 | 0.35 | 0.15 | 0.2-0.5 | 4.0-5.0 | 0.25 | 0.15 | 0.15 | remains |
5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.2 | 0.15 | 0.15 | remains |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.25 | 0.15 | 0.15 | remains |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.15 | remains |
6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1 | 0.6-1.2 | 0.2 | 0.1 | 0.15 | remains |
7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 5.1-5.6 | 0.2 | 0.15 | remains |
Application
Certification
FAQ
Q1: Can you cut the materials into small sizes
A: Yes,we can do it to meet you need.
Q2: What's your minimum order quantity (MOQ)
A: We accept small orders,a small amount of samples is ok.
Q3: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the
sample and freight firstly.We will return the sample fee after you
make an order.
Q4: Can you provide Certificates for aluminum materials ?
Q: Yes,we can supply MTC-Material Test Certificate.
Q5: What’s the delivery time for orders?
A:Normally it takes 3-10 working days, or mutual agreement.
|
|
