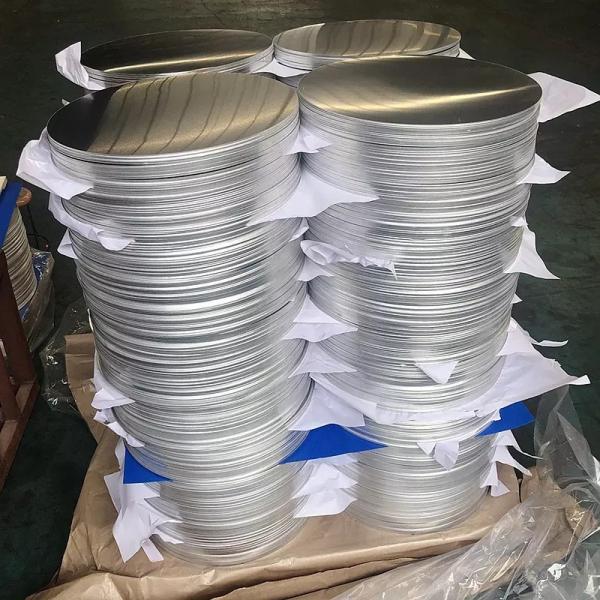

ASTM Circle Aluminium Disc 1050 1060 1100 Mill Finish Thick 0.5mm 1mm 1.2mm Fryers
Aluminum discs or circles in various sizes and thicknesses are
commonly used to manufacture products, as well as more creative
uses. Products manufactured with aluminum circles include
capacitors, medical tubes and kitchen wear, as well as beverage
cans. The circles are often drawn with presses into various
sizes.Aluminum Disc offered is made available in different alloy
grades of 1050, 1060, 1070, 1100, 3003.
Features: - Option of different temper like HO, H12, H14, H16 ...
Product Name | Aluminum Circle |
Alloy | 1050/1060/1100/1235/3003/8011/8079 |
Temper | O,H12,H14,H16,H18,H19,H22,H24,H26 |
Thickness | 0.5-5mm etc. |
Diameter | 100-600mm,can be customized |
Surface | Mill finish, embossed |
MOQ | 5 tons |
| Alloy | Master .AL | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca | |||
| 1050 | 99.5 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | --- | --- | 0.05 | --- | |||
| 1060 | 99.6 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | --- | --- | 0.05 | --- | |||
| 1070 | 99.7 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | -- | --- | 0.04 | --- | |||
| 1100 | 99 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | --- | -- | --- | 0.1 | --- | |||
| Temper | Thickness(mm) | Tensile strength | Elongation% | ||||||||||
| HO | 0.55-5.50 | 60-100 | ≥ 20 | ||||||||||
| H12 | 0.55-5.50 | 70-125 | ≥ 4 | ||||||||||
| H14 | 0.55-5.50 | 85-145 | ≥ 2 | ||||||||||
| H16 | 0.55-5.50 | 110-160 | ≥ 2 | ||||||||||
| H16 | 0.55-5.50 | ≥ 130 | ≥ 2 | ||||||||||
Material table | Product use | |
1000 series | 1050 | Food, chemical and extrusion coils, various hoses, fireworks powder |
1060 | Chemical equipment is its typical use | |
1100 | Chemical products, food industry installations and storage
containers, weldments, heat exchangers, printed boards, nameplates
and reflective appliances | |
Product Details

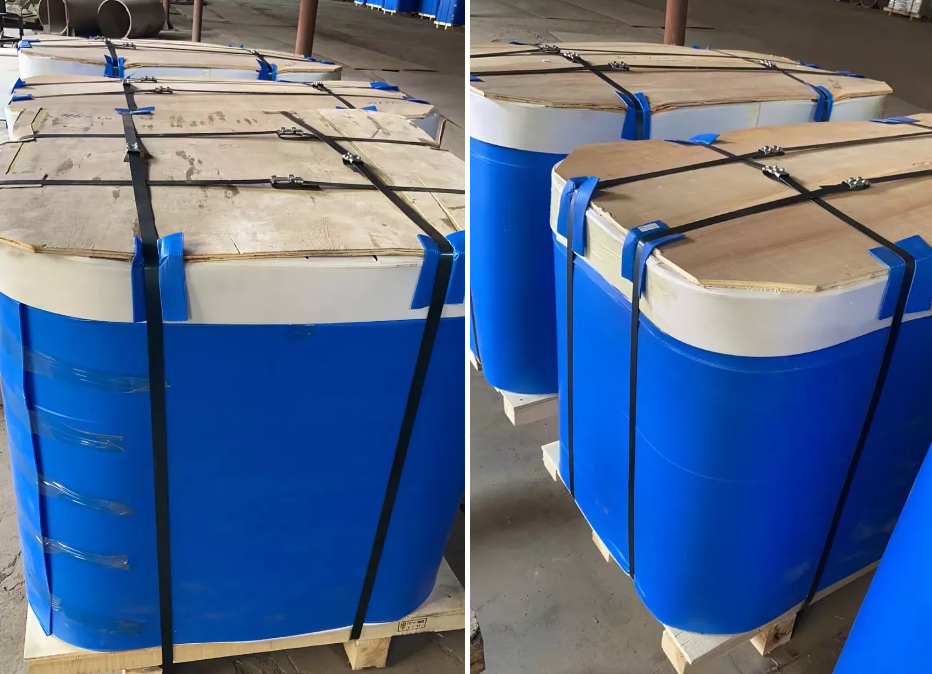

Packing and Shippment
1, Plastic film + wooden box
2, Aluminum circle/disc The aluminum round surface is good,
ensuring no obvious scratches, oil stains, oxidation, black
spots,etc.
Certification
FAQ
Q: Are you manufacturer?
A: Yes, we are.
Q:Can you produce according to my requirement?
A:Yes, all the design, size, printing and packaging can be done according to customer's request. About any further detail, please feel free to contact us.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
|
|
