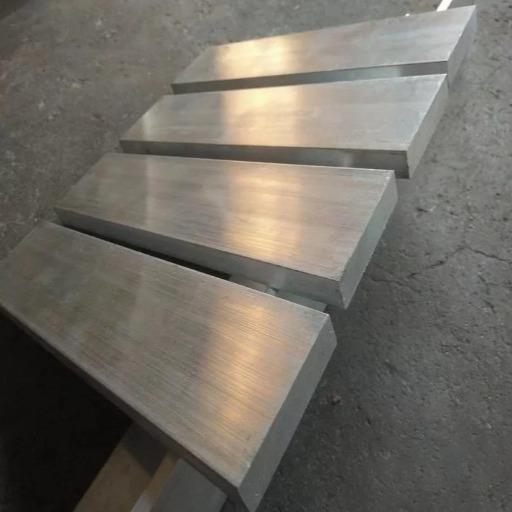

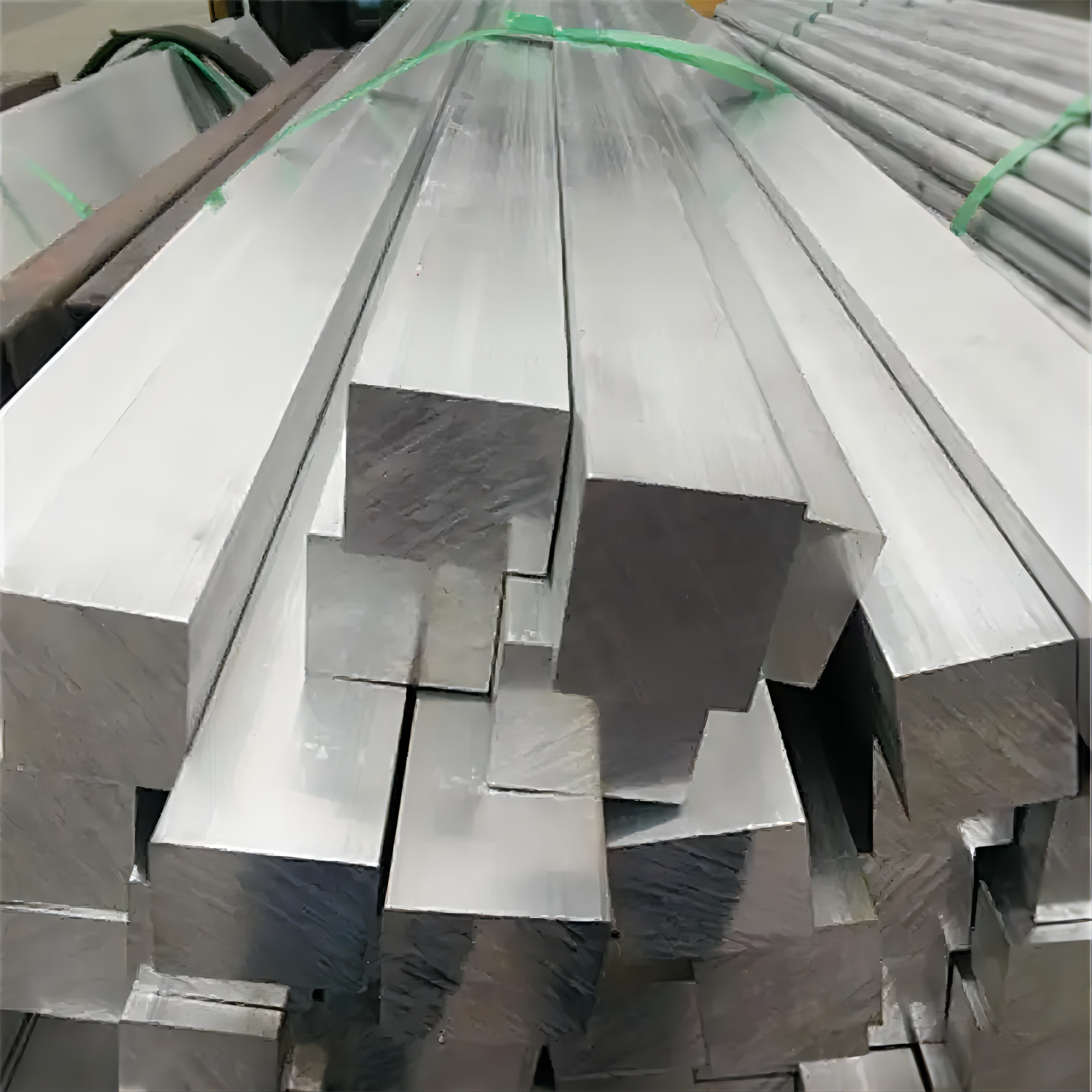

8mm 10mm 2a12 3003 Aluminium Flat Bar Square Shape 100mm 200mm Width Polished

8mm 10mm 2A12 3003 Aluminium Flat Bar Square Shape 100mm 200mm Width Polished

Description

Aluminum flat bar is one of the most widely used extrusion materials and can be used in various projects in various industries. Aluminum flat bar is an excellent choice for various construction, because its flat and rectangular faces can be customized to the exact size and length that suits your needs.

One of the most common applications of aluminum flat bar is for frame structures. For this application, simply cut the bar to the appropriate length, then weld or drill to fit the frame. Especially for construction purposes, a frame made of aluminum flat bar is the right choice because it can bear a lot of weight.

Item	Aluminum alloy rod ,Aluminum billet.
Standard	ASTM,JIS,SUS,DIN,GB,EN,etc.
Material	1060,1090,1200,1100,1199,2024,2124,3003,3004,5050,5083, 5154,5454,5652,5086,5056,5754,6061,6062,6063,7075,etc.
Size	Width:10mm-100mm or as required Length:1m-12m or as required.
Surface	Anodizing,brush,sand blast,powder coating,polished,mill,polished,etc.
Application	Aluminum bar can be widely used as aircraft structure,rivers,missile components,truck wheel,screw elementsor other various structures.
Export to	America,Australia,Brazil,Canada,Peru,IranIndia,France,Spain,Thailand,Korea,Arab,United Kingdom,etc.
Package	Standard export package,suit for all kinds of transportation,or as customer's requirement.
Container size	20ft GP:5898mm(Length)2352mm(Width)2393mm(High) 40ft GP:12032mm(Length)2352mm(Width)2393mm(High) 40ft HC:12032mm(Length)2352mm(Width)2393mm(High)
Contact	If you have any question,please feel free to contact meWe promise your inquiry or requirements will get prompt attention.

Product Details

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	-	-	0.1	-	Rem.
3004	0.3	0.7	0.25	1.0-1.5	0.8-1.3	-	0.25	-	Rem.
3005	0.6	0.7	0.3	1.0-1.5	0.20-0.6	0.1	0.25	0.1	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	-	Rem.
5038	0.40-0.7	0.4	0.1	0.40~1.0	4.0-4.9	-	0.3	0.2	Rem
5083	≤0.40	0-0.4	≤0.10	0.40~1.0	4.0~4.9	0.05~0.25	≤0.25	≤0.15	Rem.
6061	0.40-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	Rem.
6082	0.7-1.3	0.5	0.10	0.4-1.0	0.6-1.2	0.25	0.25	0.25	Rem.
6063	0.20-0.6	0.35	0.10	0.10	0.45-0.9	0.10	0.10	0.10	Rem.
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	99.60
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	Rem.

Mechanical property

Alloy	Temper	Tensile Strength	Yield Strength	Elongation (%)		Tensile Strength	Yield Strength
	Temper	Tensile Strength	Yield Strength	Elongation (%)		Tensile Strength	Yield Strength
		(ksi)	(ksi)	0.01-0.05 in	0.051-0.125 in	(MPa)	(MPa)
1100	H12	16	15	4	12	110.3	103.4
1100	H14	18	17	3	10	124.1	117.2
3003	H12	19	18	9	11	131	124.1
3003	H14	22	21	3	7	151.7	144.8
3004	H32	31	25	6	15	213.7	172.4
3004	H34	35	29	5	10	241.3	199.9
3005	H12	26	24	5	13	179.3	165.5
3005	H14	29	28	4	9	199.9	193.1
5005	H12	20	19	5	9	137.9	131
5005	H14	23	22	4	7	158.6	151.7
5052	H32	33	28	7	10	227.5	193.1
5052	H34	38	31	6	8	262	213.7
5056	O	42	22	23	24	289.6	151.7
5056	H38	60	50	6	13	413.7	344.7
6061	T4	35	21	22	24	241.3	144.8
6061	T6	45	40	12	17	310.3	275.8
7075	O	33	15	16	18	227.5	103.4
7075	T6	83	73	11	12	572.3	503.3

Recommend Products

Application

Aluminium flat bar can be widely applied in construction, machinery, electronics, sports equipment, advertising, transportation, consumer goods, furniture, aviation, military, and other applications.

Packing & Shipping

Certificate

FAQ

1. Are you manufacturer?

A: Yes, we are.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Aluminum products,copper tube,copper sheet,copper coil,titanium tube,titanium sheet

4. why should you buy from us not from other suppliers?
High cost performance, product quality, in the steel industry has more years of trading experience, can provide a stable source of goods for enterprises

5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese
