| Brand Name : | LIANZHONG |
| Model Number : | 6063 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 20000 Ton/Tons per Month |
| Delivery Time : | 8-14 days |

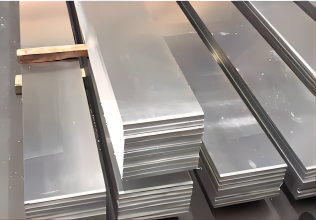

AISI Air Grade T3 - T8 Mill Finish Polished 2024 Aluminium Flat Bar 0.30mm
How strong is aluminum flat bar?
Aluminum flat bar provides superior strength. This varies by grade, but 6061 aluminum, in particular, has a shear strength of 30 kilopounds per square inch, a yield point of 40 ksi, and a tensile strength of 45 ksi.
What are aluminum flat bars used for?
Flat bar is a basic of building support materials. They are generally used for support braces, ladder hangers, gate latches, duct work, overhead doors, heaters and bracing.
Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
Thickness | 0.1mm - 260mm |
Width | 500-2000mm |
Length | to clients’ requirement |
Coating | Polyester, Fluorocarbon, polyurethane and epoxy
coating(PE/FC/PUR/EPOXY) |
Surface | Mill finished, Coated, Embossed,Brushed, Polished, Mirror,
Anodized,etc |
Gloss | Meet the customer requirement |
Material | Aluminum Flat Bar |
Standard | GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc |
OEM service | Perforated, Cutting special size, Doing flatness, Surface
treatment,etc |
Usage | Construction filed, Ships building industry, Decoration,
Industry,Manufacture,Machinery and hardware fields, etc |
Delivery | In general, within 7-15 working days after receiving deposit or
According to Final order quantity |
Packaging Details | Standard export package. |
One pallet is about 2-3 ton.Two steel belts in width and three in
width. | |
One 20GP container can load about 18-20 tons Aluminium Sheet. | |
One 40GP container can load about 24 tons Aluminium Sheet |
Grade | Hardness | Tensile Strength | Yield Strength | Elongation(%) | |
(MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm | ||
1100 | O | 89.6 | 34.5 | 30 | 6 |
H12 | 110.3 | 103.4 | 4 | 12 | |
H14 | 124.1 | 117.2 | 3 | 10 | |
2024 | O | 186.2 | 75.8 | 18 | 20 |
T3 | 482.6 | 344.7 | 16 | 18 | |
T4 | 468.8 | 324.1 | 20 | 19 | |
3003 | O | 110.3 | 41.4 | 30 | 33 |
H12 | 131 | 124.1 | 9 | 11 | |
H14 | 151.7 | 144.8 | 3 | 7 | |
5052 | O | 193.1 | 89.6 | 20 | 21 |
H32 | 227.5 | 193.1 | 7 | 10 | |
H34 | 262 | 213.7 | 6 | 8 | |
5083 | O | 275.8 | 144.8 | 21 | 25 |
H32 | 282.7 | 151.7 | 20 | 21 | |
H34 | 330.9 | 255.1 | 11 | 14 | |
6061 | O | 124.1 | 55.2 | 25 | 26 |
T4 | 241.3 | 144.8 | 22 | 24 | |
T6 | 310.3 | 275.8 | 12 | 17 | |
7075 | O | 227.5 | 103.4 | 16 | 18 |
T6 | 572.3 | 503.3 | 11 | 12 | |
