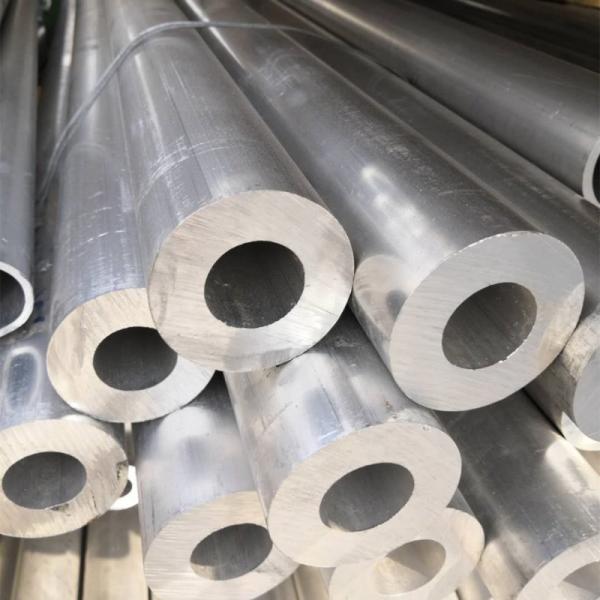

7001 7075 T6 6001 6063 T5 Aluminum Pipe Hollow Tube Large Diameter
Seamless
Product Description
Advantages of aluminum pipe: First, welding technology advantages: suitable for industrial production of thin-wall copper aluminum pipe welding technology, known as a world-class problem, is the key technology of air conditioner connection pipe aluminum copper replacement. Second, the service life advantage: from the inner wall of the aluminum pipe, because the refrigerant does not contain moisture, the inner wall of the copper and aluminum connection pipe will not corrod. The third is energy-saving advantage: the connection pipeline between the indoor unit and the outdoor unit of the air conditioner, the lower the heat transfer efficiency, the more energy saving, or the better the heat insulation effect, the more power saving. Fourth, excellent bending performance, easy to install and move.
Model | Aluminum Tube | |||
Material Grade | 1000 series: 1050,1060,1070,1080,1100,1435, etc 2000 series: 2011,2014,2017,2024, etc 3000 series: 3002,3003,3104,3204,3030, etc 5000 series: 5005,5025,5040,5056,5083, etc 6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc 7000 series: 7003,7005,7050,7075, etc | |||
Size | Outer Diameter: 3 - 250mm | |||
Wall Thickness: 0.3 - 50mm | ||||
Length: 10mm - 6000mm | ||||
Standards | ASTM, ASME,EN, JIS, DIN,GB/T etc | |||
Surface Treatment | Mill finished,Anodized,Powder coating,Sand blast,etc | |||
Surface Colors | Nature, silver, bronze, champagne, black, gloden, etc or as
customized | |||
Status | T4 T5 T6 or other special status | |||
Usage | aluminum profile for windows doors decoration construction curtain
wall | |||
Quality | China Nation Standard GB/T | |||
Packing | Protective film + plastic film or EPE + kraft paper | |||
Certificate | ISO 9001 2008 | |||
MOQ | 1 tons. Usuall 12 tons for a 20 feet contaner; 24 tons for a 40
feet container. | |||
Press Machine | 500-4000 tons all together 64 press lines | |||
Moulding | 1. Using our moulds, no fee; 2. Using customer drawing, opening mould, usually about 5 tons the moulding fee is free; 3. Can be diguessed. | |||
Product Detail
Chemical Compositon
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 99.5 |
1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | 0.04 | 0.03 | 99.7 |
1100 | 0.95 Si + Fe | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 99 | |
2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | Rem. |
3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | Rem. |
3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | — | 0.25 | — | Rem. |
3005 | 0.6 | 0.7 | 0.3 | 1.0-1.5 | 0.20-0.6 | 0.1 | 0.25 | 0.1 | Rem. |
5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | Rem. |
5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | Rem. |
5252 | 0.08 | 0.1 | 0.1 | 0.1 | 2.2-2.8 | — | 0.05 | — | Rem. |
6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | Rem. |
7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | Rem. |
Recommend Products
Application
Packing & Shipping
Certificate
FAQ
Q:what is the terms of delivery?
A: EXW, FOB, CIF, CFR, DDU
Q: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or
belts, we could also pack the goods as the customers' requirement.
Q: What is your delivery time?
A: For stocks, we could transport the goods to loading port within
7 days after we received your deposit. For production period,it
usually takes about 15 days-30 days after receiving the deposit.
|
|
