6061 T6 Aluminium I Beam Al Alloy Profile Equal Side 6m Length Customized Size

Ask Lasest Price
Brand Name :	LIANZHONG
Model Number :	1000series, 2000series, 3000series, 5000series, 6000series, 7000series
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20000 Ton/Tons per Month
Delivery Time :	3-15 days

Add to Cart

Product Details
Company Profile

6061 T6 Aluminium I Beam Al Alloy Profile Equal Side 6m Length Customized Size

6061 T6 Aluminium I Beam Al Alloy Profile Equal Side 6m Length Customized Size

Product Description

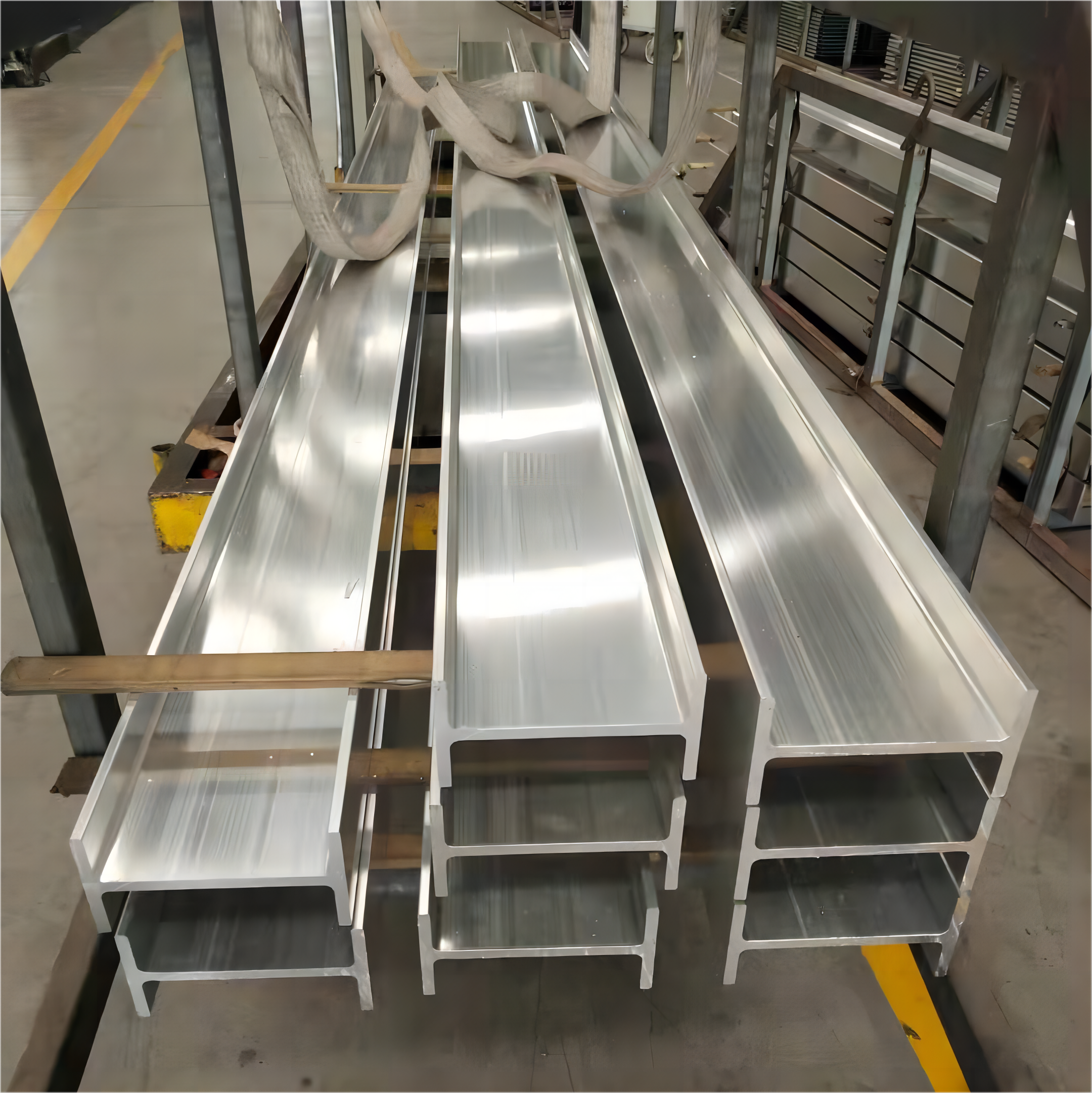

6061-T6 extruded Aluminum American standard I beams are an excellent candidate for most processing techniques and both interior and exterior applications. Aluminum American standard I beams have a smooth finish and a tapered flange against the web meeting the specifications for AMS-QQ-A 200. Common applications include buildings, walkways, headers, and platforms. It’s lightweight, corrosion resistant, and designed to span over a distance making it an excellent choice wherever strength is required.

Item	Aluminium Profiles
Standard	GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Grade	1000, 2000, 3000, 4000, 5000, 6000series a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. b) 2000 Series: 2014, 2024, etc. c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. d) 4000 Series: 4045, 4047, 4343, etc. e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc. f) 6000 Series: 6061, 6063, 6082, 6A02, etc.
Length	1-12m or as required
Temper	0-H112,T3-T8, T351-851
Surface	Anodizing,brush,sand blast,powder coating,polished,mill,polished,etc..
Aplication	1)Further making utensil2)Solar reflective film 3)The appearance of the building 4)Interior decorating; ceilings, walls,etc 5)Furniture cabinets 6)Elevator decoraction 7)Signs, nameplate,bags making 8)Decorated inside and outside the car 9)Household appliances:refrigerators, microwave ovens, audio equipment,etc
MOQ	1 ton , We can accept sample order.
Shipment Time	Within 7-15 workdays after receiving deposit
Export Packing	Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Container size	20ft GP:5898mm(Length)2352mm(Width)2393mm(High) 40ft GP:12032mm(Length)2352mm(Width)2393mm(High) 40ft HC:12032mm(Length)2352mm(Width)2393mm(High)

(H×B)	Section size		W(kg/m)	(H×B)	Section size		W(kg/m)
(H×B)	T1	T2	W(kg/m)	(H×B)	T1	T2	W(kg/m)
100×50	5	7	9.54	346×174	6	9	41.8
100×100	6	8	17.2	350×175	7	11	50
125×125	6.5	9	23.8	350×350	12	19	137
148×100	6	9	21.4	390x300	10	16	107
150×75	5	7	14.3	396×199	7	11	56.7
150×150	7	10	31.9	400×200	8	13	66
175×90	5	8	18.2	400×400	13	21	172
175×175	7.5	11	40.3	440×300	11	18	124
194×150	6	9	31.2	446×199	8	12	66.7
198×99	4.5	7	18.5	450×200	9	14	76.5
200×100	5.5	8	21.7	482×300	11	15	115
200×200	8	12	50.5	488×300	11	18	129
244×175	7	11	44.1	496×199	9	14	79.5
248×124	5	8	25.8	500×200	10	16	89.6
250×125	6	9	29.7	582×300	12	17	137
250×250	9	14	72.4	588×300	12	20	151
294×200	8	12	57.3	596×199	10	15	95.1
298×149	5.5	8	32.6	600×200	11	17	106
300×150	6.5	9	37.3	700×300	13	24	185
300×300	10	15	94.5	800×300	14	26	210
340×250	9	14	79.7	900×300	16	28	243

Product Details

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	99.5
1070	0.2	0.25	0.04	0.03	0.03	—	0.04	0.03	99.7
1100	0.95 Si + Fe		0.05-0.20	0.05	—	—	0.1	—	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	Rem.
3004	0.3	0.7	0.25	1.0-1.5	0.8-1.3	—	0.25	—	Rem.
3005	0.6	0.7	0.3	1.0-1.5	0.20-0.6	0.1	0.25	0.1	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	Rem.
5252	0.08	0.1	0.1	0.1	2.2-2.8	—	0.05	—	Rem.
6061	0.40-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	Rem.

Physical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation (%)		Tensile Strength	Yield Strength
	Temper	Tensile Strength	Yield Strength	Elongation (%)		Tensile Strength	Yield Strength
		(ksi)	(ksi)	0.01-0.05 in	0.051-0.125 in	(MPa)	(MPa)
1100	H12	16	15	4	12	110.3	103.4
1100	H14	18	17	3	10	124.1	117.2
3003	H12	19	18	9	11	131	124.1
3003	H14	22	21	3	7	151.7	144.8
3004	H32	31	25	6	15	213.7	172.4
3004	H34	35	29	5	10	241.3	199.9
3005	H12	26	24	5	13	179.3	165.5
3005	H14	29	28	4	9	199.9	193.1
5005	H12	20	19	5	9	137.9	131
5005	H14	23	22	4	7	158.6	151.7
5052	H32	33	28	7	10	227.5	193.1
5052	H34	38	31	6	8	262	213.7
5056	O	42	22	23	24	289.6	151.7
5056	H38	60	50	6	13	413.7	344.7
6061	T4	35	21	22	24	241.3	144.8
6061	T6	45	40	12	17	310.3	275.8
7075	O	33	15	16	18	227.5	103.4
7075	T6	83	73	11	12	572.3	503.3

Application

Packing and Shippment

Certification

FAQ

1. Q: Are you a manufacturer?

A:Yes, we are manufacturers. We have our own factory and our own company.I believe we will be the most suitable supplier for you.

2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory,check our production lines and know more about our strength and quality.

3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available.

4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best

price with earlist vessel and professional service.
